Silicon carbide crucible
+
  • Silicon carbide crucible

Silicon carbide crucible


Silicon carbide crucibles are ceramic bowl-shaped containers with a deep bottom. When there is a solid that needs to be heated with a high flame, a crucible must be used. This is because it can withstand high temperatures better than glassware.
Get Quote

Product Features and Uses

Silicon carbide crucibles are ceramic deep-bottomed bowl-shaped containers. When there are solids to be heated with a high flame, a crucible must be used. Because it can withstand high temperatures better than glassware.

Characteristics of Pressureless Sintered Silicon Carbide Ceramic Materials

Pressureless sintered silicon carbide ceramics are made from high-purity, ultra-fine silicon carbide powder, with a small amount of sintering aids added, sintered in an inert gas or vacuum atmosphere at high temperatures of 1950~2100℃. The resulting products are almost completely dense and have excellent mechanical properties. Pressureless sintered silicon carbide ceramics include: sleeve products, sliding bearing products, mechanical sealing rings, flat rings, sandblasting nozzles, bulletproof plates, ceramic heating plates, ceramic heat distribution plates, 3D glass thermal bending grinding tools, and microchannel reactor ceramic plates.

Products from JNDE NEW MATERIAL Company made of silicon carbide ceramics have characteristics such as resistance to acid and alkali corrosion, high hardness and wear resistance, good self-lubrication, high temperature oxidation resistance, low thermal expansion coefficient, and good thermal conductivity. They are widely used in aerospace, automotive industry, petrochemical, mechanical sealing, metallurgy and power, pump equipment, thermal bending grinding tools, microchannel reactors, new energy, semiconductors, scientific research, and national defense military industries.

Project

Unit

Index

Bulk Density

g/cm³

3.08-3.16

Hardness HV

kg/mm³

>2550

Compressive Strength

Mpa

>2500

Flexural Strength

Mpa

400-490

Silicon Carbide Content

%

>=99.2

Elastic Modulus

Gpa

>=410

Thermal Conductivity

W/m.k

100-120

Thermal Expansion Coefficient

i/℃

4.0

Porosity

%

<0.1

Poisson's Ratio



0.16

Operating Temperature

1900

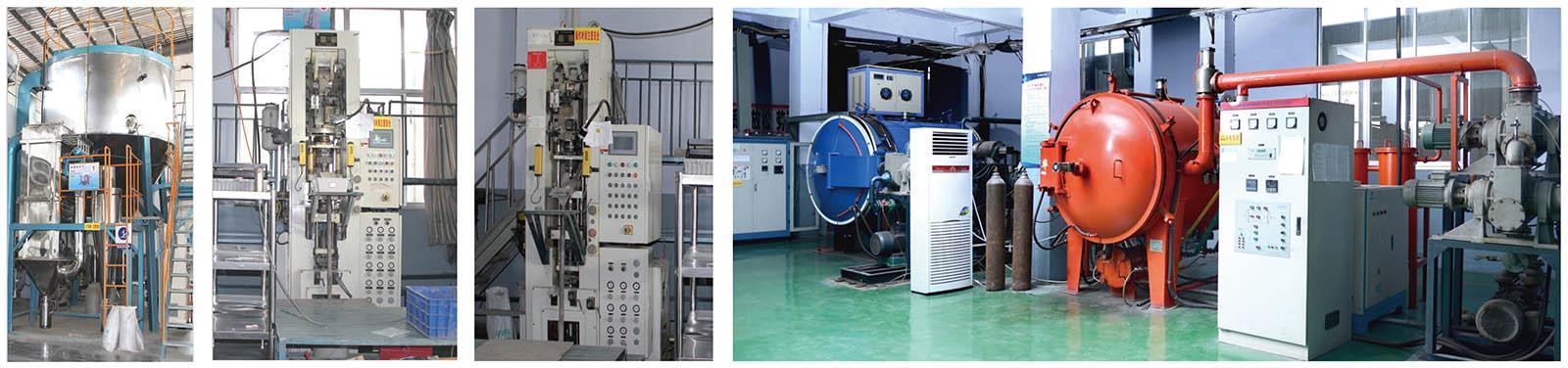

Pressureless Sintered Ceramic Production Equipment

jinde

Product Certification

Quality Management System Certification Certificate
Quality Management System Certification Certificate
Invention Patent Certificate
Invention Patent Certificate
Invention Patent Certificate
Invention Patent Certificate

Faq

Can I visit your factory?

Welcome to our factory. Please contact us first. With your schedule, we will provide you with the necessary services.

Do you have any samples?

We will provide free samples or make samples based on your color samples.

Do you accept small orders?

Don't worry. Please feel free to contact us at any time. In order to obtain more orders and provide our customers with more conveners, we accept small orders.

When can I get the quotation?

We usually provide you with a quotation within 24 hours after receiving your inquiry. If you urgently need a quote. Please call us or let us know in your email so that we can prioritize your inquiry.
